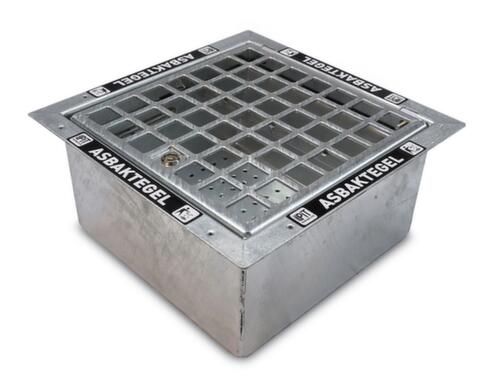

Bottom ashtray DropPit Basic

Bottom ashtray

• Less soiling in front of building entrances, cigarette butts are disposed of where they already end up anyway
• Ideally suited for the entrances to public buildings, such as hospitals or administrative buildings, but can also be used in front of sports halls and company buildings
• No water accumulation thanks to holes in the base of the body and inner container for rainwater drainage

Body:

• Made of steel
• High corrosion protection due to galvanized surface

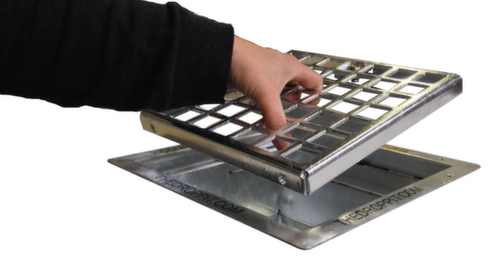

• With removable grating

Inner container:

• Made of aluminum

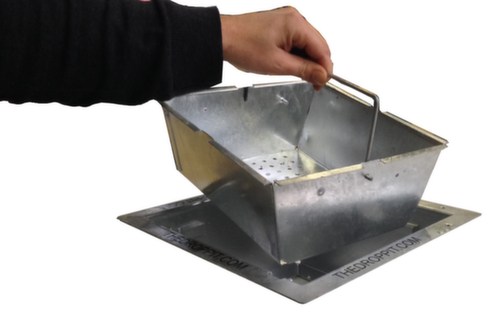

• Easy to remove and empty thanks to the bow handle

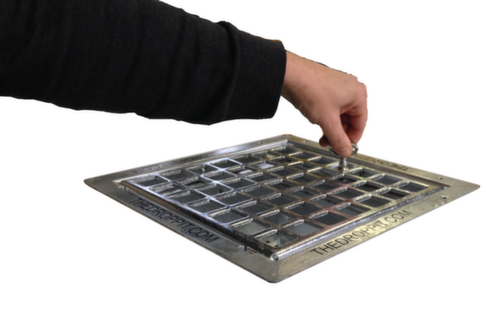

• To empty, simply open the lock with the key, first remove the grating and then the inner container

Scope of delivery:

• Incl. key
• Incl. fastening material (ground anchor)

Accessories (please order separately):

• Various bases if the ashtray cannot be embedded in the floor

Mounting instructions:

• Remove as many base plates or paving stones until an area of 300 x 300 mm is exposed
• Dig a hole with a depth of 170 to 200 mm
• A 50 mm layer of gravel can be filled into the hole so that the rainwater can drain away optimally
• Place the ashtray in the hole and secure it in the corners with the ground anchors
