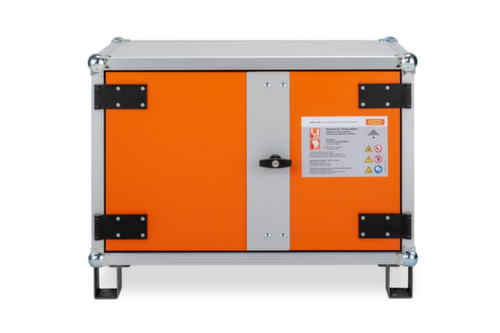

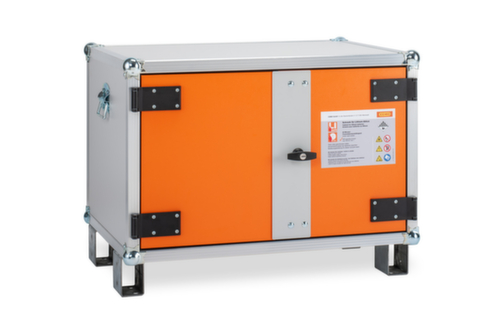

Cemo Explosion-proof lithium-ion storage cabinet lockEX 8/5 can be driven under, height x width x depth 520 x 800 x 660 mm

Cemo Accessible lithium-ion storage cabinet lockEX 8/5

for effective fire and explosion protection

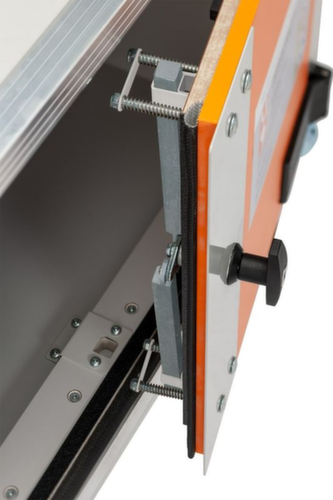

The design with non-combustible, fire-resistant components reduces the consequences of fire to a minimum and significantly increases safety during operation. Special fire protection seals prevent flames from escaping. The cold smoke-tight closure system prevents smoke and vapors from escaping from the cabinet. In the event of a faulty Li-battery exploding, conventional cabinet doors can be blown open. However, the spring-based, patent-protected mechanism in the lockEX door lock ensures that the explosion energy is dissipated in a controlled manner. The cabinet doors are only pushed open a small gap and are immediately pulled shut and locked again. The relocked doors ensure that the batteries can burn down safely, employees and the surrounding area are protected and the enclosure system remains operational. For storage in the workroom.

• Height x width x depth 520 x 800 x 660 mm
• Height x width x depth inside 450 x 730 x 530 mm
• Construction from Steel
• Load capacity per level 30 kg

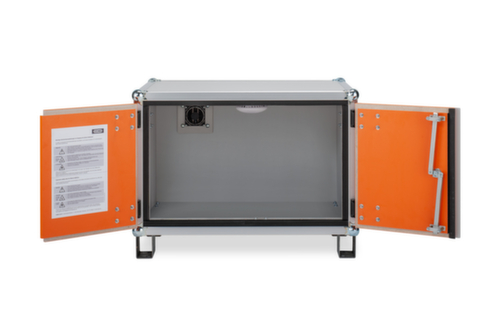

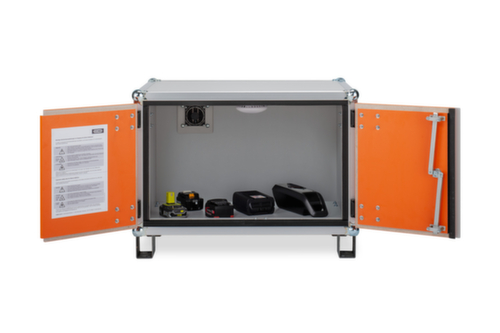

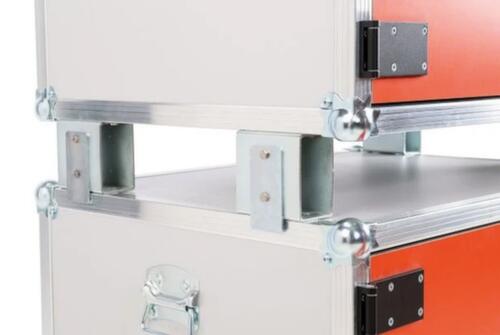

Access to the cabinet contents is particularly convenient via the double hinged door. Doors can be locked together. Doors with all-round special fire protection seals. In the event of a fire, two smoke detectors provide an early, audible alarm signal. One smoke alarm is attached to the top inside of the battery cabinet. The second smoke alarm is fitted outside the cabinet as an amplifier. Both smoke alarms communicate with each other via a radio link . Substructure Stacking feet - this means that the cabinets can not only be driven under and moved easily, but also that up to 3 cabinets can be stacked securely (3 8/5 cabinets or one 8/5 cabinet at the bottom and one 8/10 cabinet at the top).

• Body with paint finish in similar to RAL7035 light gray
• Front with paint finish in similar to RAL2004 pure orange
• MPA-tested fire resistance over 60 minutes from inside to outside in accordance with DIN EN 1363-1
