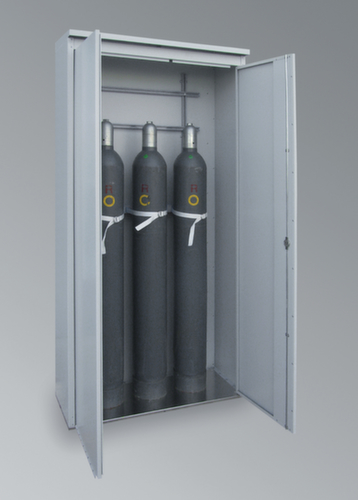

Lacont Gas cylinder cabinet for 50 liter cylinders

Gas cylinder cabinet

• Made of galvanized sheet steel and additionally powder-coated
• Suitable for indoor and outdoor use

Doors:

• Double wing door
• Lockable with cylinder lock

Equipment:

• Ventilation openings in the door and under the roof overhang for optimum ventilation and air extraction
• Exhaust air connection through DN 80 pipe socket on the enclosure ceiling
• Roof is slanted forwards

Interior fittings:

• Stainless steel base to prevent damage from impacts
• 2 vertical C-rails on the rear wall
• 2 horizontal and height-adjustable C-rails for mounting fittings
• 1 tensioning strap (bottle holder)
• Holes (Ø 25 mm) in the ceiling for pipe feed-throughs with blanking plugs

Labeling:

• Warning signs according to ASR 1.3

Fulfilled guidelines / standard:

• Depending on the defined fire load, can also be used in buildings, for further information see TRGS 510, DGUV and TRGS 526
• Storage and operation even without compliance with the protected areas according to TRGS 510
