Art. No.: A520784
Free Shipping
Delivery time: 10-15 working days
Brief description
Furniture type
Shelf
Shelf type
Cantilever rack
Shelving system
Screw system
Shelf field
Base field
suitable for (product/material)
bulky goods
Utilization
on both sides

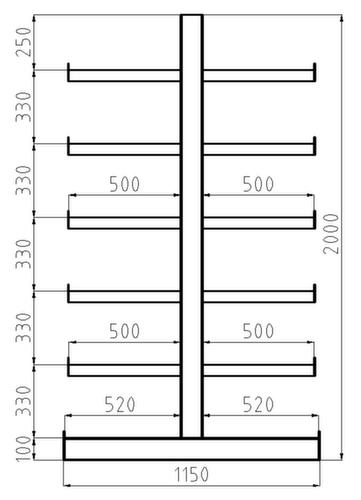

Height
2000 mm
Width
2700 mm
Effective depth
500 mm
Depth
1150 mm
Storage levels Number
6 Piece
Floors / levels Quantity
5 Piece
Floor / level type
Cantilever arm
Total load capacity
7200 kg
Load capacity per upright
2400 kg
Cantilever alignment
straight
Cantilever arm length Version
equally long
Cantilever arm equipment
Roll-off protection
Stand quantity
3 Piece
Cantilevers per upright Number
6 Piece
Load capacity per arm
200 kg
Material
Steel
Stability / bracing / reinforcement
Diagonal bracing // Longitudinal ledgers
Stand surface
sandblasted // powder-coated
Cantilever surface
sandblasted // powder-coated
Color stand
gentian blue // RAL5010
Color cantilevers
gentian blue // RAL5010
Color Version
gentian blue // RAL5010
Delivery
disassembled
Scope of delivery
Uprights and cantilevers as per quotation, diagonal/longitudinal bracing
Guarantee
5 Year(s)
Crane/forklift unloading required
yes // please inquire
DGUV standard
DGUV 108-007
Usage information DIN EN 15635
Fuse required
Utilization note shelf load
The specified shelf loads apply with uniform load distribution
Weight
126,869 kg
Base field. suitable for bulky goods. Screw system - particularly robust and ideal for long-term storage space planning.

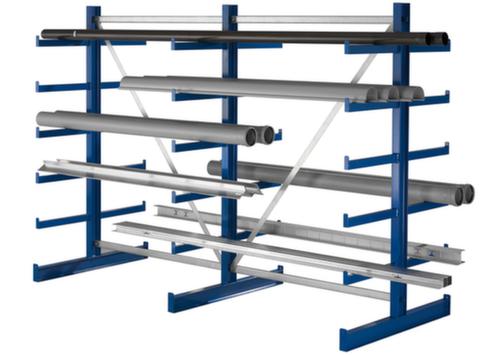

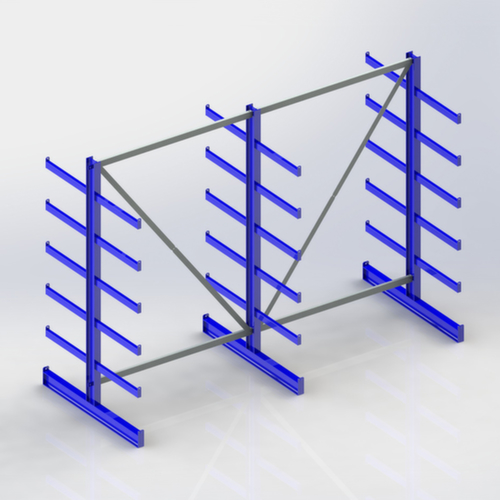

The most important dimensions of the META cantilever rack Atlas ST at a glance:Utilization Double-sided - flexible installation possible anywhere in the room. 6 Storage levels. 5 Level(s) with Cantilever arm, with roll-off protection. Load capacity per arm 200 kg. Equal length arms, straight aligned. Effective depth 500 mm. Construction from Steel. Stand Sandblasted with powder coating in RAL5010 Gentian blue. Cantilever arms Sandblasted with powder coating in RAL5010 Gentian blue.
Ordering information: Unloading with forklift or crane required. Please enquire if required. The specified shelf loads apply with uniform load distribution. For your safety: according to DIN EN 15635, shelving must be fastened and secured to the floor from a height of 4 times the shelf depth (ratio 4:1). Complies with DGUV regulation 108-007 (formerly BGR 234).
