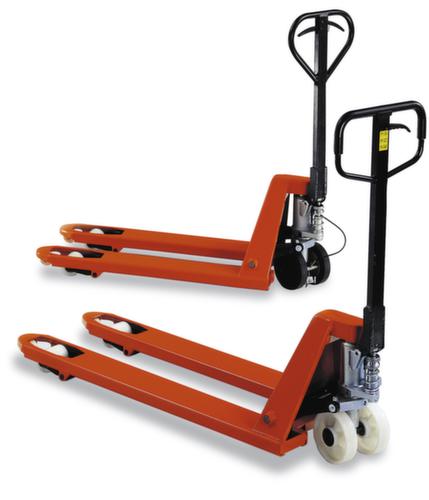

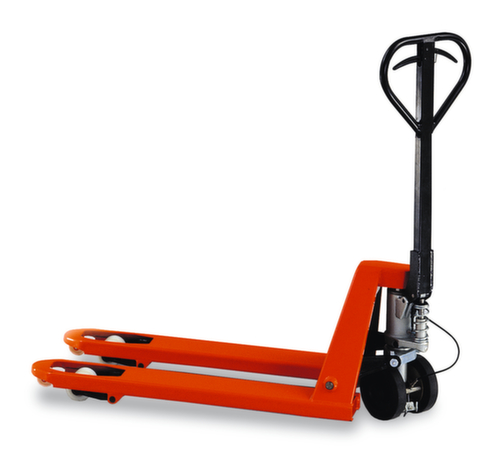

RAPIDLIFT Pallet truck, 2500 kg Load capacity, Solid rubber/Nylon

Pallet truck

• Made of steel with powder coating
• Forks pressed from one piece for torsion-free stability
• Tension rod made of rectangular profile with additional reinforcement at the brackets for the hydraulics
• Reinforced tiller with ergonomic tiller handle that includes the lifting-driving-lowering functions
• The sprung drawbar automatically returns to the vertical position when released
• Low pumping force due to optimized pumping force geometry
• Infinitely adjustable lowering speed ensures finely dosed lowering
• The seals have been specially developed and can withstand an above-average pressure of 800 bar
• The pistons are hardened, chrome-plated and polished
• The hydraulics are galvanized on the outside and fitted with a brass valve for greater corrosion resistance
• Each hydraulic system is individually tested for function.
• The hydraulic oil works in the temperature range from -35° to +85° C and is therefore suitable for cold stores
• An overload valve protects against overloading

Roles:

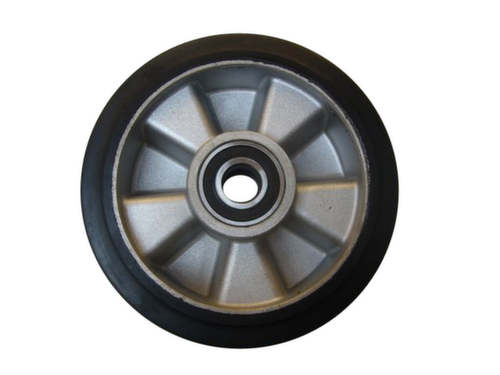

• Solid rubber swivel castors, nylon fork castors, single
• Swivel castors Ø x W = 200 x 50 mm
• Fork rollers Ø x W = 82 x 100 mm
• Climbing rollers on the fork tips
